ECB Multifunction/PIC Board
Introduction
]] Compile information from Jeff C's User's Guide, notes, .pdfs and 2015/9/22 update .txt (see file list below) directly onto this Wiki page ]]
The MF/PIC board is intended to provide multiple I/O functions for Motorola MC680x0 CPU boards such as the mini-68K or KISS-68030 boards. It also supports vectored interrupts on the Z80 CPU boards, SBC v1 and v2.

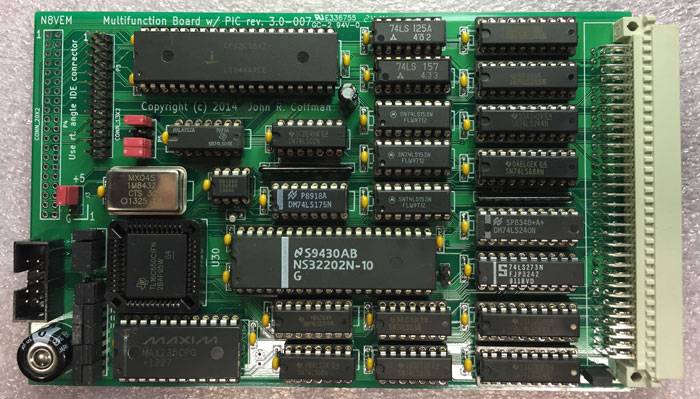

The board 3.0-007 contains the following peripheral functions:
Programmable vectored interrupt controller using the National Semiconductor NC32202.
Single console serial port using the PLCC version of the TL16C550 with level shifters.
Battery-backed CMOS/RTC using DS1302.
Parallel interface using an 82C55; also supports PPIDE.
Current Version: (New) PCB Board v4.0-008 is available (Note: Update by JVM on 03-04-2021)
Hardware Documentation
Schematic: pic-3.0-007-sch.pdf
Manufacturing Files: pic-3.1-007-mfg.zip
KiCad Files pic-3.0-007-kicad-2014-05-27.zip
(NEW) KiCad Files pic-4.0-008-kicad-2019-11-18.zip (Current PCB board files)
For photos of different construction options, see the MF-PIC Construction Options page
If you need additional serial or parallel/IDE interfaces, you can make minor modifications to construct a Secondary MF-PIC Board.
Serial I/O Tutorial
See the MF-PIC Serial I/O Tutorial page
Files
Filename
Filesize
Last modified
155.7 KiB
2015/11/11 15:20
304.4 KiB
2015/11/11 15:20
3.0 MiB
2016/03/12 10:15
2.6 MiB
2016/03/12 10:13
100.3 KiB
2015/11/11 14:48
4.4 KiB
2015/11/11 15:20
346.1 KiB
2015/11/11 15:20
pic-3.0-007-2015-06-24_submitted.zip
239.3 KiB
2015/11/11 15:20
583.4 KiB
2015/11/11 15:20
pic-3.0-007-kicad-2014-05-27.zip
3.0 MiB
2015/11/11 15:20
202.1 KiB
2015/11/11 15:20
5.9 KiB
2015/11/11 15:20
811.8 KiB
2015/11/11 15:20
202.7 KiB
2015/11/11 15:20
6.2 KiB
2015/11/11 15:20
pic-4.0-008-kicad-2019-11-18.zip
9.2 MiB
2021/03/02 16:17
294.5 KiB
2024/03/07 10:18
26.6 KiB
2015/11/11 15:20
7.0 KiB
2015/11/11 15:20
387.0 KiB
2015/11/11 15:20
1.2 KiB
2015/11/11 15:20
For archived old board version files, see the MF-PIC Old Versions page
