ECB Analog & Digital I/O (ADIO)
Introduction
The ECB ADIO board provides both Analog and Digital I/O capabilities, which can be used by builders to interface their RBC systems to external digital and analog systems. Additionally, 2 J-type thermocouple signal conditioners are included for reading of temperatures.
Main features of the board include:
82C55 Parallel Interface chip for Digital Input & Digital Output
MAX158 8-channel, 8-bit ADC for Analog Input
2x AD594 Thermocouple Signal Conditioning chips for interfacing J-Type thermocouples to the MAX158
DAC0832 1-channel, 8-bit DAC for Analog Output
Hardware Documentation

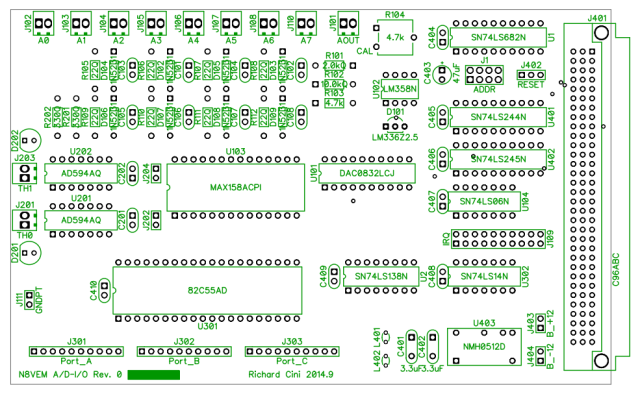

Board: diptrace_pcb_-_rbc_adio.pdf
Schematic: diptrace_schematic_-_rbc_adio.pdf
Manufacturing Files:
]] Files not on old wiki ]]
KiCAD Files: ]] Files not on old wiki ]]
Builder's Notes/Comments
Please use this space to add any notes/comments on this board that don't fit into the above sections. (Periodically, these comments may be re-arranged to be better incorporated into a new revision of the wiki page.) Please sign your comments using the wiki “Insert Signature” feature! — Andrew Bingham 2016/02/28 02:14
Photo Gallery
No images found.
File List
Filename
Filesize Last modified diptrace_pcb_-_rbc_adio.pdf 123.3 KiB 2016/02/28 02:18 diptrace_schematic_-_rbc_adio.pdf 184.8 KiB 2016/02/28 02:18 ecb_adio_front.png 191.1 KiB 2016/02/28 02:21
